Bagloader HBS
Fully-automatic packing machine for loading sliced or unsliced bread and buns automatically into pre made wicket bags.
various range of unsliced and sliced bread, as well as buns and rolls
length 140 – 370 mm
width 80 – 200 mm
height 70 – 150 mm
suitable for different type plastic bags on a wicket (paper bags on request)
30 bags per minute low speed, 60 bags per minute high speed
electrical connection 400 Volt – 50 Hz
power input ca. 4,5 kW
pneumatic connection 6 bar (250 L/min)
Features
- Automatic regulation of the bag table height by motor drive.
- Compact and easy to operate machine with practically no maintenance.
- Standard with inverter to adjust the speed of the bagloader.
- Photocell controls for the last bag and whether the bag is opened or not.
- Touch screen display for failure, operation explanation, speed, counters etc.
Optional features
- ”automatic” bag changing system for non stop production. (3 postitions).
- Infeed system for sliced bread.
- Special customised infeed system for buns / rolls.
- Infeed conveyor for manual loading of unsliced products.
- Splitting and turning system for half loaves.
Compatible with
Slicing
Continuously rotating band blades, angled to pull the loaves through the blade to give the highest quality slice.
Continuously rotating band blades, angled to pull the loaves through the blade to give the highest quality slice.
The method of slicing with a vertical moving knives makes it ideal for products such as rye or fruit bread or different types of cake.
The method of slicing with a vertical moving knives makes it ideal for products such as rye or fruit bread or different types of cake.
Closing
Conveyor with clipband closing system. 60 bags per minute.
Conveyor with clipband closing system. 60 bags per minute.
Conveyor with tab lock closing system. 60 bags per minute.

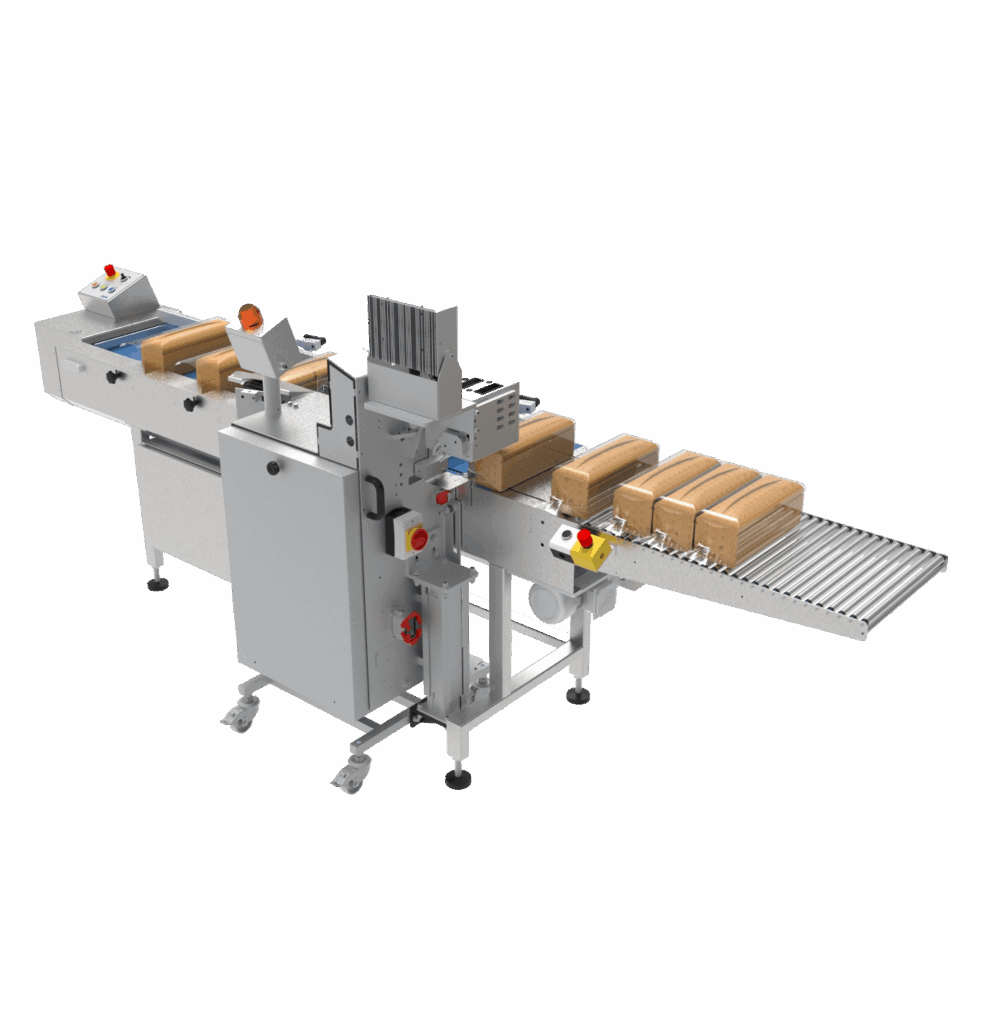

Conveyor with tape closing system. 60 bags per minute.

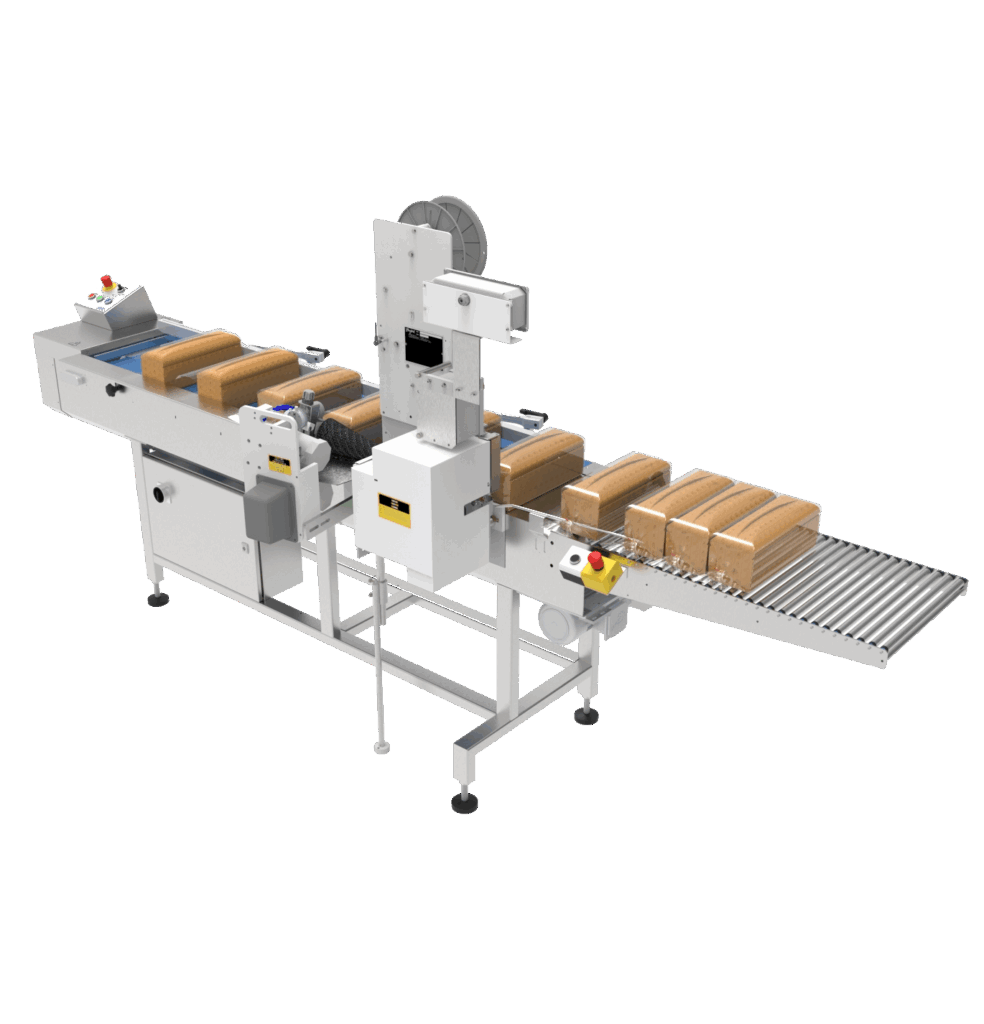

Conveyor with Twist Tyer closing system. 60 bags per minute.
Combination
Slicer in combination with bagloader and closing conveyor.
