Closing conveyor HPL-10
Semi-Automatic closing conveyor with a tab lock closing system. To combine with many different bread slicers for sliced bread or to combine with a stand-alone bagblower for easy opening and loading of unsliced bread, buns and rolls into pre made wicket bags.
various range of unsliced and sliced bread, as well as buns and rolls
length : 140 – 370 mm
width : 80 – 240 mm
height : 70 – 170 mm
tab lock closure available in different colours and possible holes sizes
30 bags per minute, depending on the products, requirements and the operators working on the machine
electrical connection 400 Volt – 50 Hz}
power input ca. 0,6 kW
Features

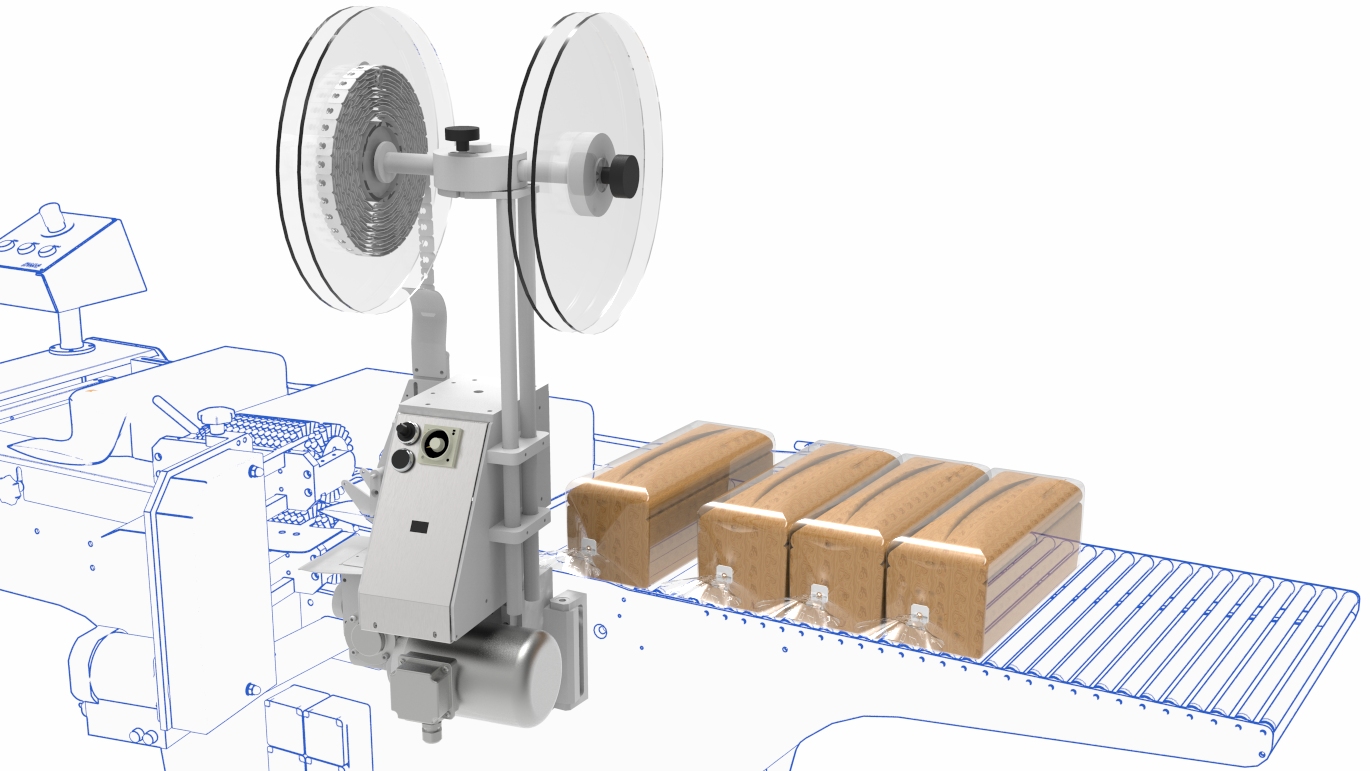

- Installed tab lock closing machine for closing with tab lock or Kwik Lok closures.
- Bagtensioner type HBT to smooth the bag before closing.
- Transportation of the products with pushers on a plastic plate.
- Standard outfeed free roller conveyor, total length 900 mm.
- Wheels under the machine, including brake.
Optional features

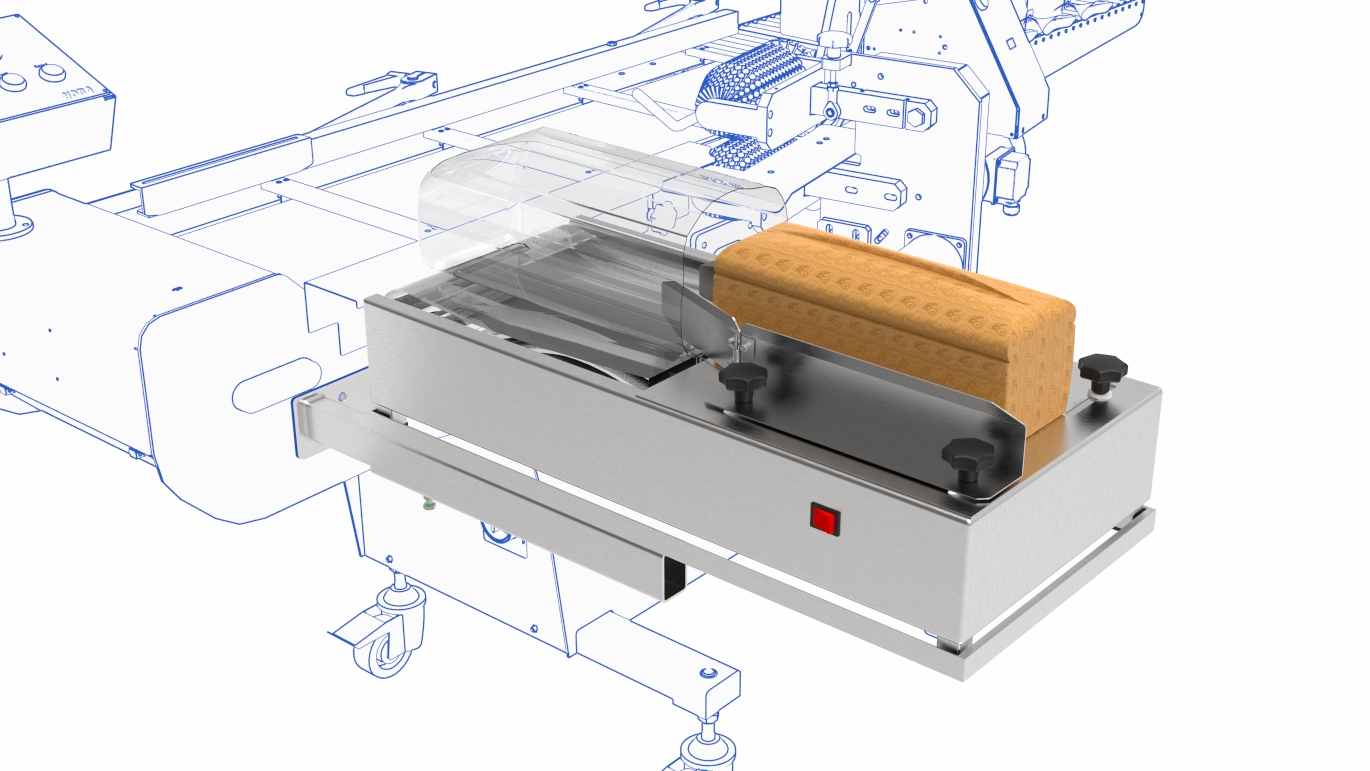

- Bagblower type HBB for manual packing of the products.
- Label-master for closures with custom-designed label.
- Date coder for printing on the closure.
Compatible with
Slicing
Continuously rotating band blades, angled to pull the loaves through the blade to give the highest quality slice.
The method of slicing with a vertical moving knives makes it ideal for products such as rye or fruit bread or different types of cake.
The method of slicing with a vertical moving knives makes it ideal for products such as rye or fruit bread or different types of cake.
Packaging
Semi-automatic packaging machine for easy bag opening and loading of bread and buns into pre made wicket bags.
Combination
Slicer in combination with bagblower and closing conveyor.
