Closing conveyor HTA-15S
Fully automatic packaging line with a clipband closing system. To combine with a bread slicer for a semi-automatic line or to combine with a Bagloader HBS system or behind a flow packer for a fully automatic line. Horizontal or inclined, various lengths available.
various range of unsliced and sliced bread, as well as buns and rolls
length : 140 – 400 mm
width : 80 – 240 mm
height : 70 – 150 mm
clipband closure with wire thickness 0,6/0,7/0,8 mm
60 bags per minute, depending on the products, requirements and the operators working on the machine
electrical connection 400 Volt – 50 Hz
power input ca. 3 kW
pneumatic connection 4 bar (10 L/min)
Features

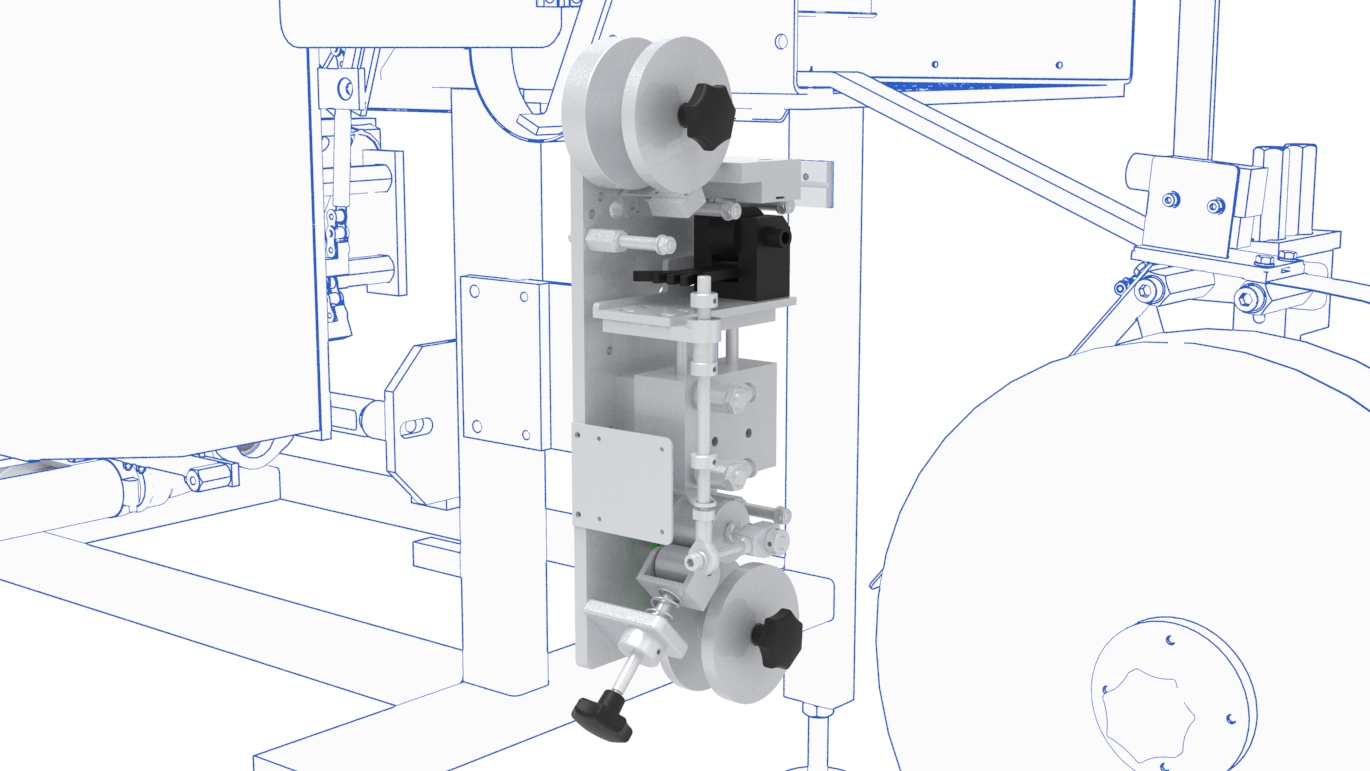

- Installedclosing machine type CL for closing with clipband.
- Bagtensioner type HBT to smooth the bag before closing.
- Transportation of the products with pushers on a plastic plate.
- Standard buffer outfeed, free roller conveyor, total length 1000 mm.
Optional features
- Vacuumpump to remove excess air from the bag.
- Mechanical and electrical synchronisation to a packing machine.
- buffer belt instead of passive rollers.
- Extra 500 mm conveyor for the installation of a labelling machine.
- Stainless steel covers and frame.
- Date coder for printing on the closure.
Compatible with
Slicing
Continuously rotating band blades, angled to pull the loaves through the blade to give the highest quality slice.
The method of slicing with a vertical moving knives makes it ideal for products such as rye or fruit bread or different types of cake.
Packaging
Semi-automatic packaging machine for easy bag opening and loading of bread and buns into pre made wicket bags.
Fully automatic packing machine for loading sliced or unsliced bread and buns automatically into pre made wicket bags.
Combination
Slicer in combination with bagblower and closing conveyor.
Slicer in combination with bagloader and closing conveyor.
