Closing conveyor HTA-5
Fully automatic packaging line with a tab lock closing system. This machine is possible to combine with many different bread slicers as a semi-automatic line or to combine with a bread slicer and Bagloader for a fully automatic line.
various range of unsliced and sliced bread, as well as buns and rolls
length : 140 – 370 mm
width : 80 – 240 mm
height : 70 – 170 mm
tab lock closure available in different colours and possible holes sizes
60 bags per minute, depending on the products, requirements and the operators working on the machine
electrical connection 400 Volt – 50 Hz
power input ca. 0,5 kW
Features
- Transportation of the products with pushers on a plastic plate
- Standard buffer outfeed, free roller conveyor, total length 1000 mm
- Installed tab lock closing machine for closing with Tab Lok closures.
- Standard with the Bagtensioner type HBT.
Optional features
- Bagblower type HBB for manual packing of the products.
- Extra 500 mm conveyor for the installation of a labelling machine.
- Outfeed conveyor belt instead of passive rollers.
- Stainless steel covers and frame.
- Date coder for printing on the closure.
Compatible with
Slicing

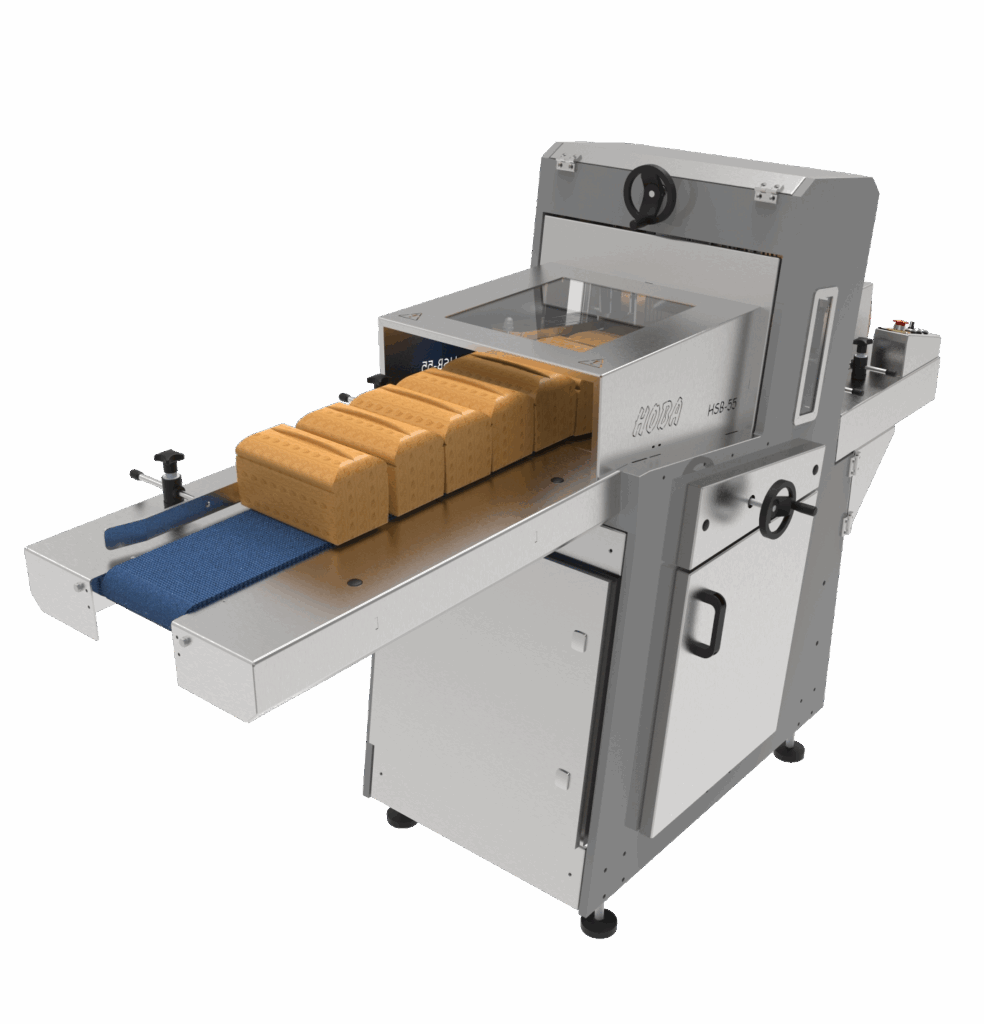

Continuously rotating band blades, angled to pull the loaves through the blade to give the highest quality slice.
The method of slicing with a vertical moving knives makes it ideal for products such as rye or fruit bread or different types of cake.
Packaging
Semi-automatic packaging machine for easy bag opening and loading of bread and buns into pre made wicket bags.
Fully automatic packing machine for loading sliced or unsliced bread and buns automatically into pre made wicket bags.
Combination
Slicer in combination with bagblower and closing conveyor.
Slicer in combination with bagloader and closing conveyor.
