Fully automatic Lines
Band or frame slicer in combination with bagloader and closing conveyor.
tin baked bread and round bread.
band blade slicer is not suitable for wet loaves or with ingredients like raisins or fruit
length : 200 – 360 mm
width : 80 – 200 mm
height : 70 – 160 mm
standard is the slice thickness not adjustable, but each slice thickness from 9 mm is deliverable
55 – 60 sliced loaves per minute, depending on
the products, requirements and the operators
working on the machine
electrical connection 400 Volt – 50 Hz
power input ca. 9 kW
pneumatic connection 6 bar (10 L/min)
Combination options
Slicing

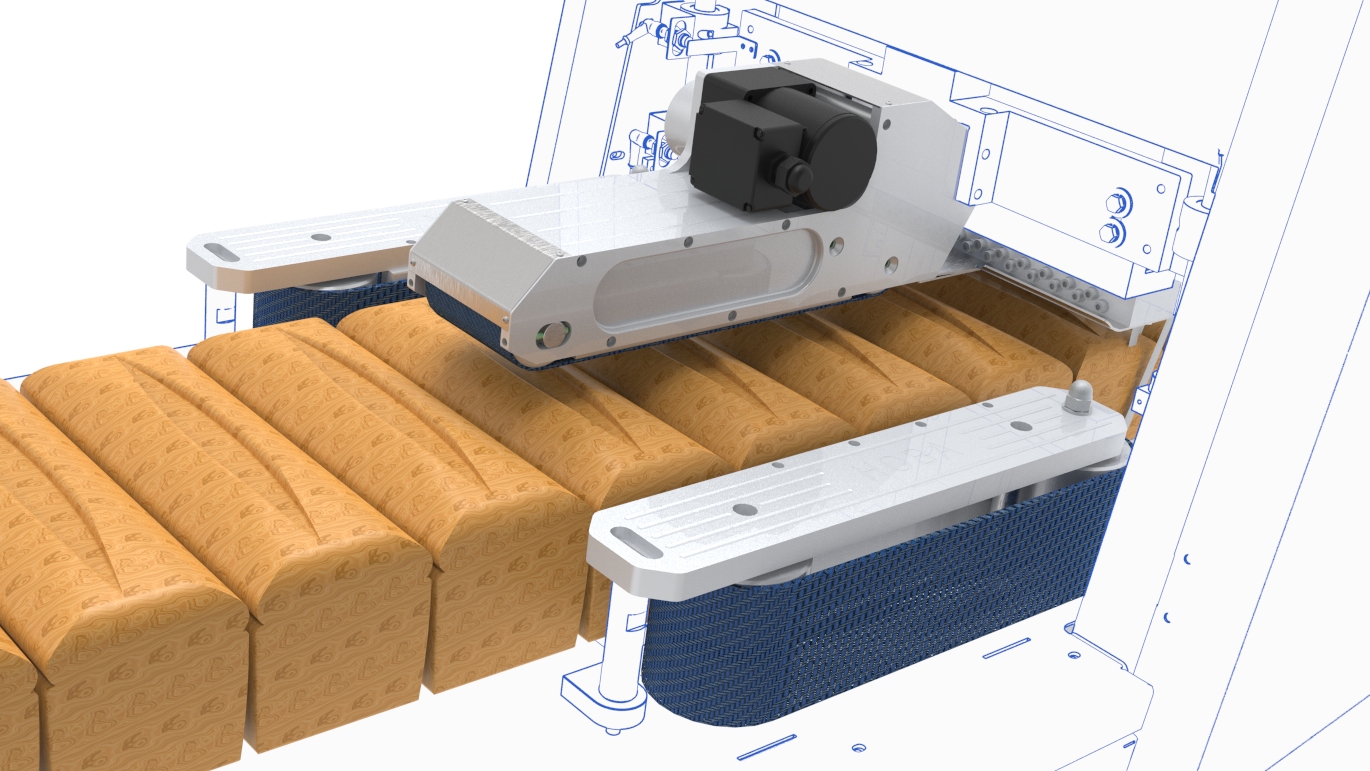

Continuously rotating band blades, angled to pull the loaves through the blade to give the highest quality slice.
Continuously rotating band blades, angled to pull the loaves through the blade to give the highest quality slice.
The method of slicing with a vertical moving knives makes it ideal for products such as rye or fruit bread or different types of cake.
The method of slicing with a vertical moving knives makes it ideal for products such as rye or fruit bread or different types of cake.
Packaging

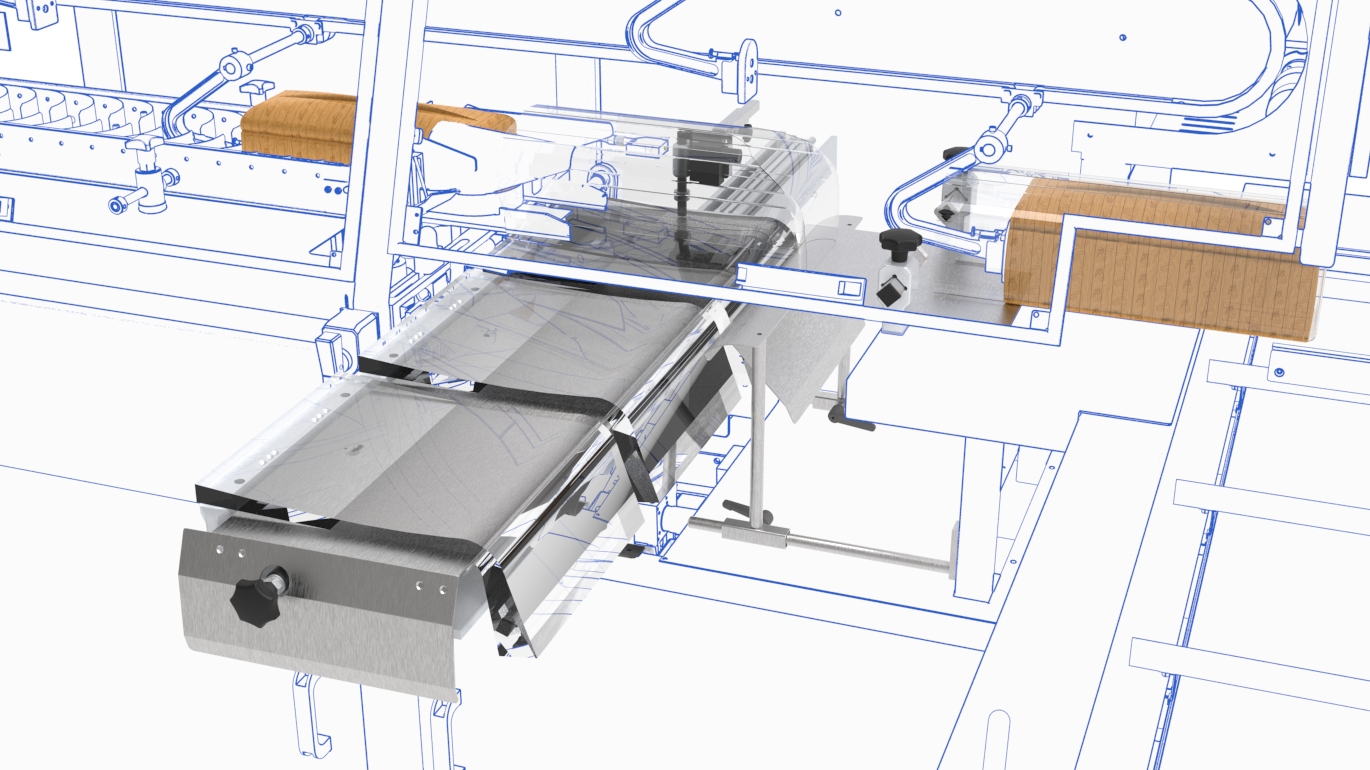

Semi-automatic packaging machine for easy bag opening and loading of bread and buns into pre made wicket bag
Fully-automatic packing machine for loading sliced or unsliced bread and buns automatically into pre made wicket bags.
Closing
Conveyor with clipband closing system. 60 bags per minute.
Conveyor with clipband closing system. 60 bags per minute.
Conveyor with tab lock closing system. 60 bags per minute.
Conveyor with tape closing system. 60 bags per minute.
Conveyor with Twist Tyer closing system. 60 bags per minute.
