Slicer HSC-Twin

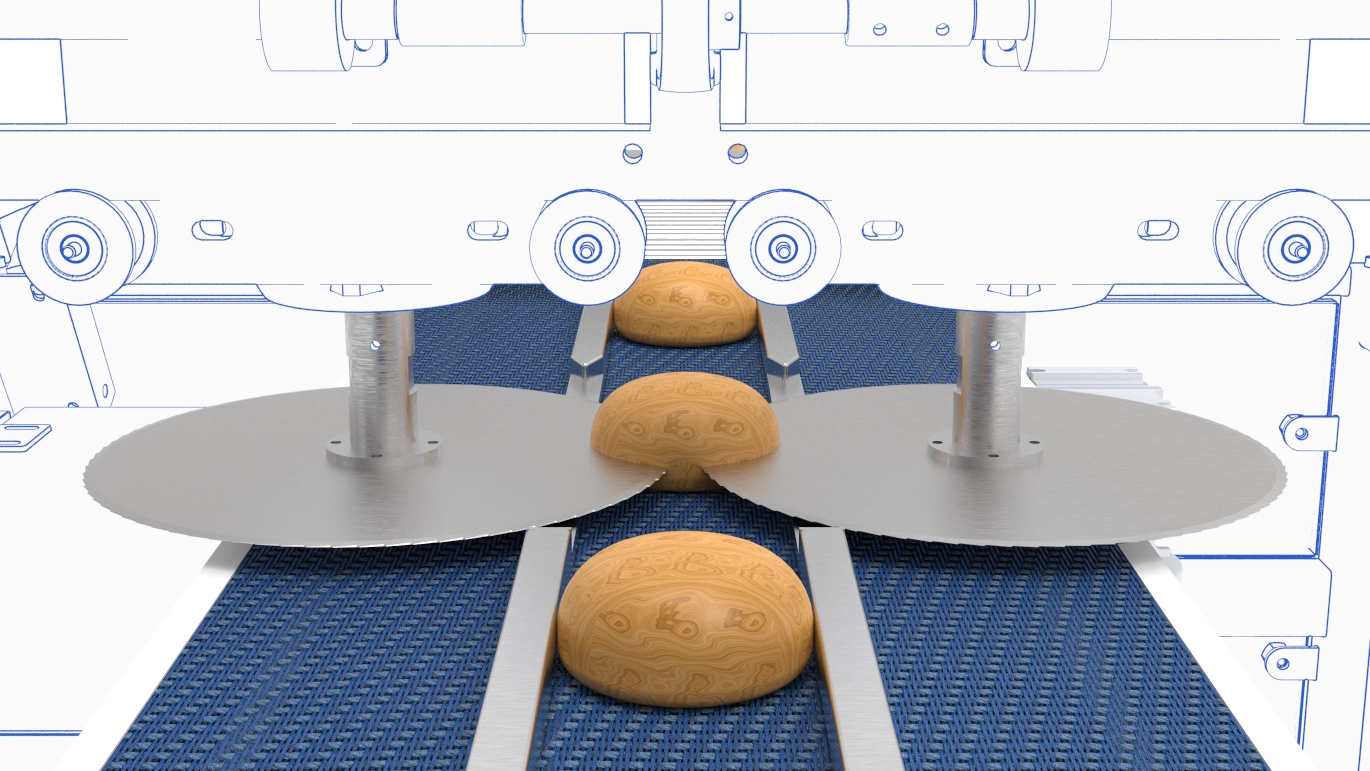

Fully automatic bun slicer with disc (round blade) for hinge slicing of buns and rolls. It is possible to slice from the side or the top. The slice depth and height can be individually adjusted with easy settings because of the position scales.
buns, rolls or hot dog bread
diameter 80 – 120 mm
height 40 – 80 mm
hinge or butterfly cut, standard is the slice height adjustable with a hand wheel
125 sliced buns per minute per row, depending on the products, requirements and the operators working on the machine
electrical connection 400 Volt – 50 Hz
power input ca. 2 kW
Features

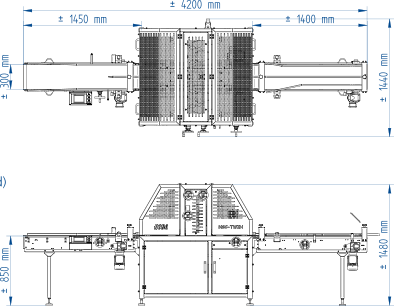

- Infeed and outfeed of the products with a conveyor belt, width 200 mm and length 2500 mm (can be customised).
- The circle blade is directly attached to the axle of the motor.
Optional features
- Top belt to control individual product (not batched).
- Top and bottom conveyors belts with adjustable speed by inverter.
- Vertical slicing ideal for hot dog buns and subs.
- Slicing in 1 or 2 rows, more on request.
- Complete stainless steel version for hygiene.
- Counting and stop system to aid packing.
Compatible with
Packaging
Fully automatic packing machine for loading sliced or unsliced bread and buns automatically into pre made wicket bags.
Pillow packer
Fully automatic packing machine for packing sliced or unsliced bread and buns in bags made from roll of film – 1 side folded, other sides sealed.
Flow packer
Fully automatic packing machine for packing sliced or unsliced bread and buns in bags made from roll of film – 2 side sealed.
Closing
Conveyor with clipband closing system. 60 bags per minute.
Conveyor with clipband closing system. 60 bags per minute.
Conveyor with tab lock closing system. 60 bags per minute.
Conveyor with tape closing system. 60 bags per minute.
Conveyor with Twist Tyer closing system. 60 bags per minute.
Combination
Slicer in combination with bagloader and closing conveyor.
